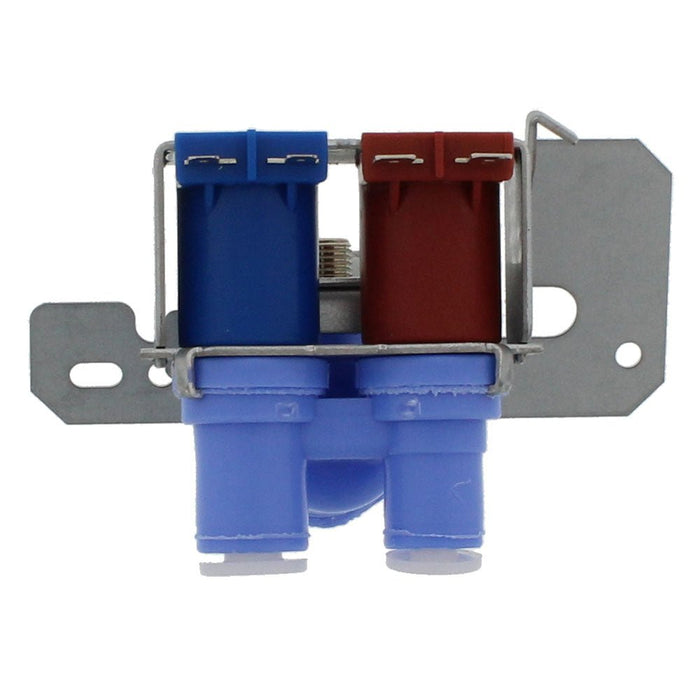

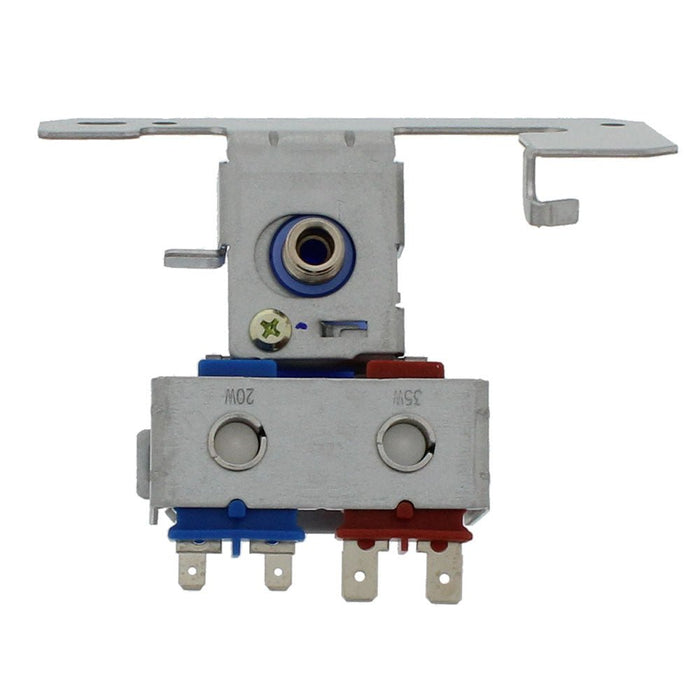

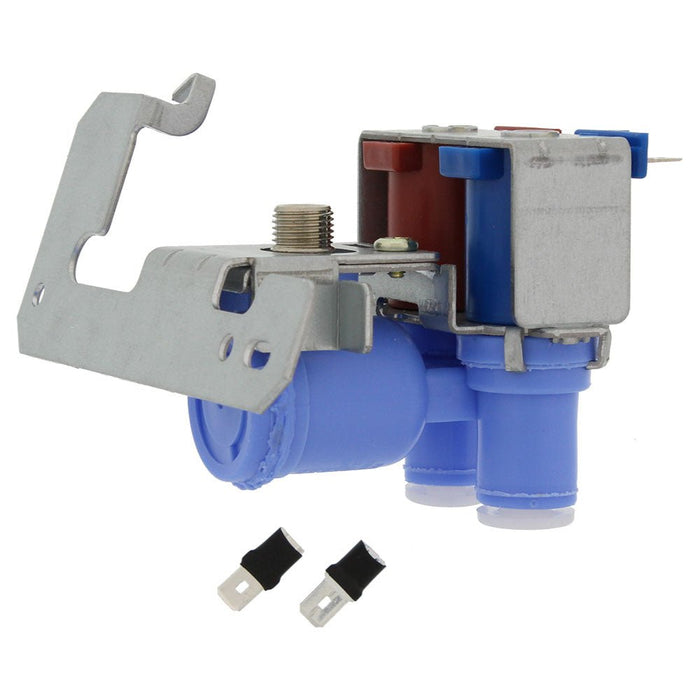

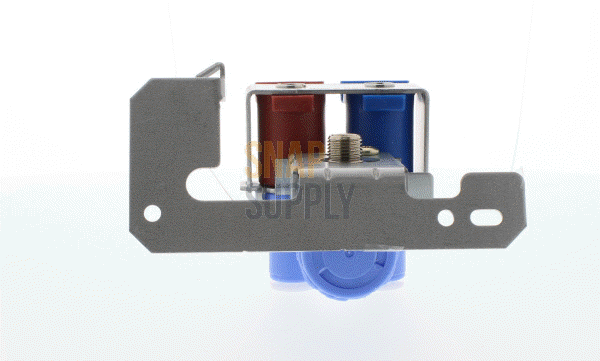

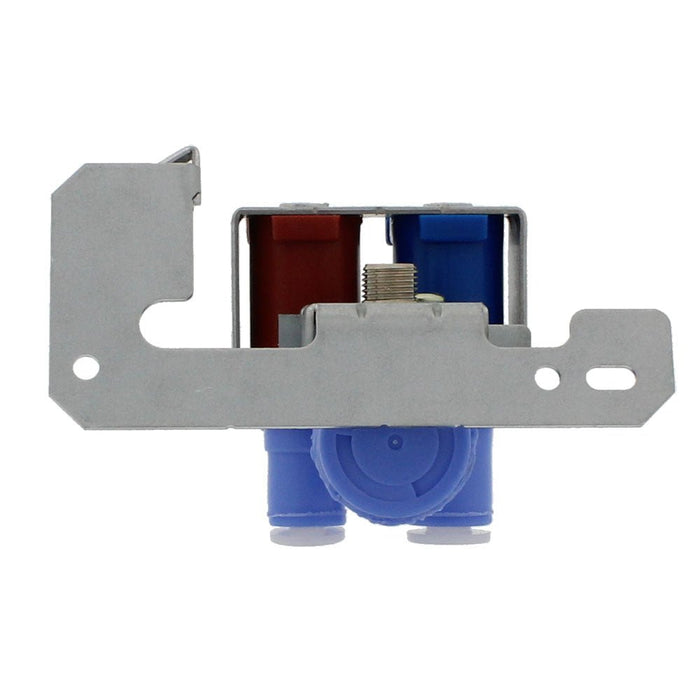

WR57X10051 Water Valve for GE

Note:

If you are replacing your refrigerator's water valve or ice maker because of a problem with the ice maker, we recommend replacing both the water valve and the ice maker.

Click here to take a look at our ice maker and water valve kits.

Description

Snap Supply’s replacement water valves could be the solution to our refrigerator’s ice maker problems. Sometimes when a refrigerator is having problems with its ice maker, it could be that the problem is the inlet water valve and not the ice maker itself.

• This Water Valve Replaces the following Part #'s: WR57X10051, AP3672839, 1032629, AH901314, EA901314, IMV-513, IMV513, PS901314, WR02X10105, WR2X10105, WR57X0092, WR57X92, WR57X0098, WR57X98, WR57X0099, WR57X99, WR57X0104, WR57X0111, WR57X0119, WR57X10018, WR57X10018E, WR57X104 WR57X111, WR57X119.
• Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
• Buy with Confidence! Snap Supply Parts always come with a 1 Year Warranty.
• Click here for installation instructions!
• Compatible with the following Refrigerator brands:  General Electric, Hotpoint, RCA, and others

Just because parts look the same does not mean that they are the same. Use the model numbers below to ensure that this part is compatible with your appliance!

All Snap parts come with installation instructions to help you with your repair. If you need more help, you can always contact us for further assistance. Email us at support@snap.parts or give us a call at 802-727-4126

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

Installation Instructions

Installation Instructions for WR57X10051

Tools Needed:

• ½ inch wrench
• Flat end screwdriver
• Razor blade

1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
2. Turn water supply off.
3. Place a towel on the floor to prevent messes. Remove the back lower panel off, remove copper tubing that supplies water to the valve with a wrench.
4. Remove the two quarter inch screws. Pull valve out and pull out wire connectors.
5. You will be disconnecting the water lines except for one see image below. Disconnect the water lines, there are two different sizes, 5/16^th and ¼ inch. Be sure to know where each of them belongs. Use a wrench to take out the compression fitting line. The part that is connected to the water line that was not disconnected does not need to be changed, with a flat end screwdriver, separate the two pieces.
   •

6. To install the new water valve, take note of the differences of the old and new valves. With a razor blade cut the water lines just below the O rings, making sure they are cut evenly. Push in water lines until they lock into place.
   • If needing to take out the hose for any reason, you must push in the gray part and then pull out the hose.

          Then, screw in the compression fitting line.

7. The part and water line that was not changed, need to go in between the two water lines that are right next to each other. Reconnect the wire connectors based on the size of them.
8. Place in assembly and the part that was not changed, is going to be held in place along with the assembly with the screw that goes on the side of the machine.
9. Next, place in the copper tubing, turn on water supply to run two to three gallons through the system to flush the system and to make sure there are no leaks.
   • If there is leaks then, remove the water valve and check if there is any damage.
10. Replace the back cover on and secure with screws.
11. Plug in appliance and installation is complete.
