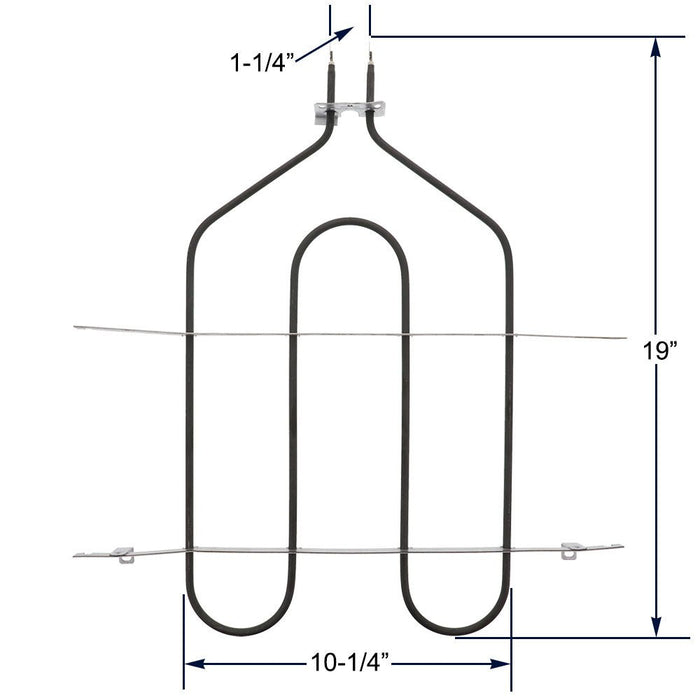

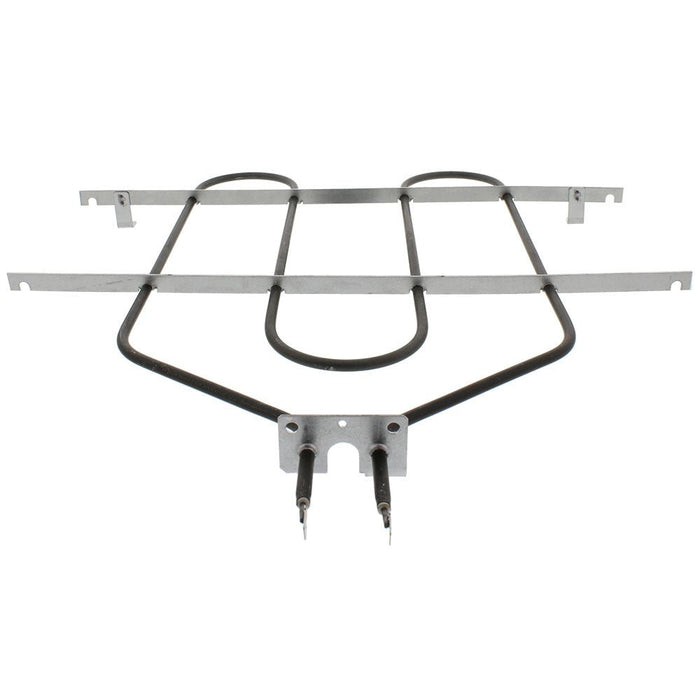

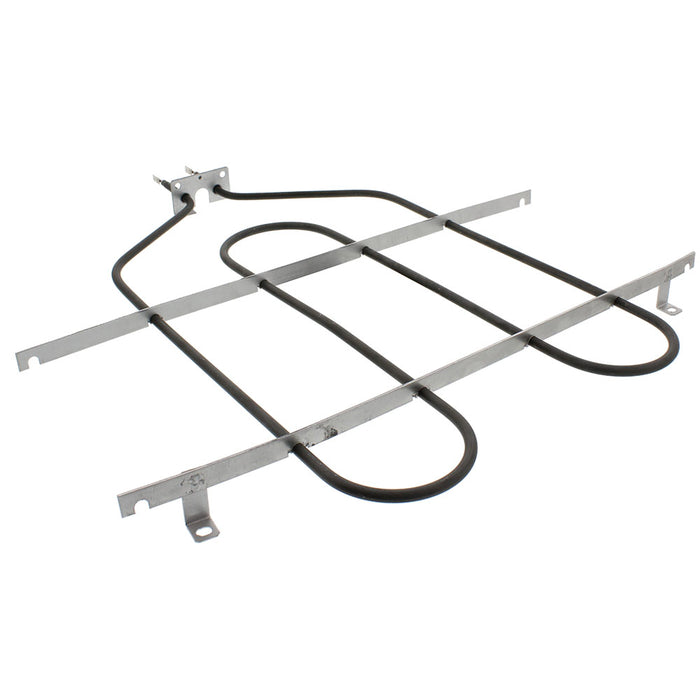

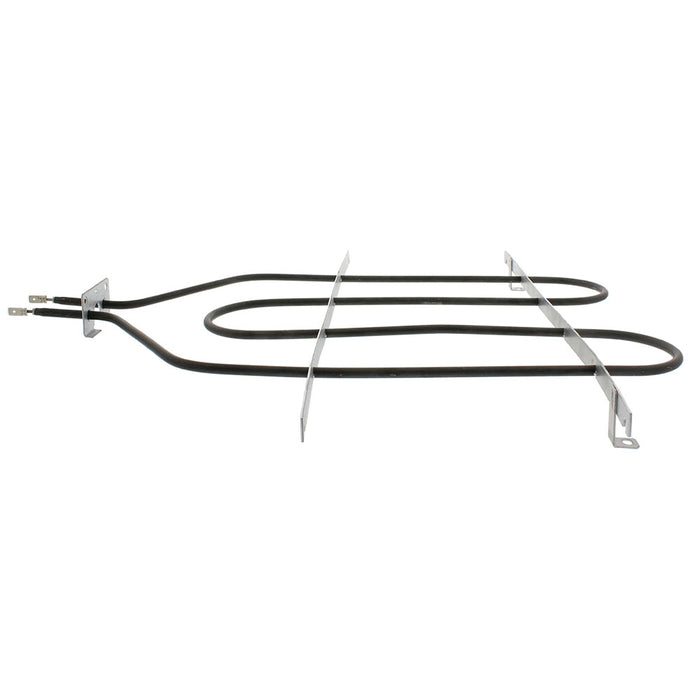

WB44T10009 Broil Element for GE

Shipping Info

Same Day Shipping

If you place your order between Monday - Friday before 3 p.m., your order will be shipped on that day. If you order on Saturday before 12 p.m., your order will be shipped on that day. If you place your order outside these times, call us at 1-802-727-4126 and we will do our best to get it out the door.

Quick Delivery, All Over The Country

We ship to 61% of the country in just 2 business days - See Shipping tab for more information!  Free shipping includes Saturday and Sunday delivery. 3-day delivery from the East Coast all the way to the Rocky Mountains and more!

We Stay On Top of It

We are using the most reliable options available. Even though all major carriers are experiencing delays, we are always happy to help. If you have a question about the status of your shipment, call us directly for the quickest response at 1-802-727-4126.

We’re Always Happy to Help

Our support team can be contacted via email at Suppot@snap.parts, or you can call us at 1-802-727-4126 during business hours. In the event that you need support outside of business hours, snap.parts has an instant message support chat that can help you solve any problem.

Description

• For quality you can trust, order broil elements for GE from Snap Supply. All of our oven element products are made with premium materials, which are tested to ensure quality and longevity. Contact us today for more information.
• Cross Reference Information
  770548, AH249284, EA249284, PS249284, WB44T10034, B00A8O0FGW
• Compatible with the following Range brands: General Electric, Hotpoint, RCA, and others
• UPC:  810019170027

• UPC:  0769388788336

Just because parts look the same does not mean that they are the same. Use the model numbers below to ensure that this part is compatible with your appliance!

All Snap parts come with installation instructions to help you with your repair. If you need more help, you can always contact us for further assistance. Email us at support@snap.parts or give us a call at 1-877-269-0086.

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

Installation Instructions

Installation Instructions for WB44T10009

Tools Needed:

• Flat head screwdriver
• Quarter inch nut driver

1. Unplug appliance and/or turn off circuit breakers to prevent electrocution.
2. Make sure the wires from the terminal do not fall back into the oven wall.
3. Open oven door, remove oven racks. It is recommended to remove the oven door for personal protection. Remove the screws stoppers on each hinge, grab the door, lift and set aside.
4. Using the quarter inch nut driver, remove the screw holding the temperature sensor and slightly pull the sensor out but not all the way out.
5. Remove the two screws from the rear bracket, remove the two screws holding the broil element, remove the element until you see the terminals.
6. With a flat head screwdriver remove the wires from the terminals. Be careful the wires do not fall back into the oven wall.

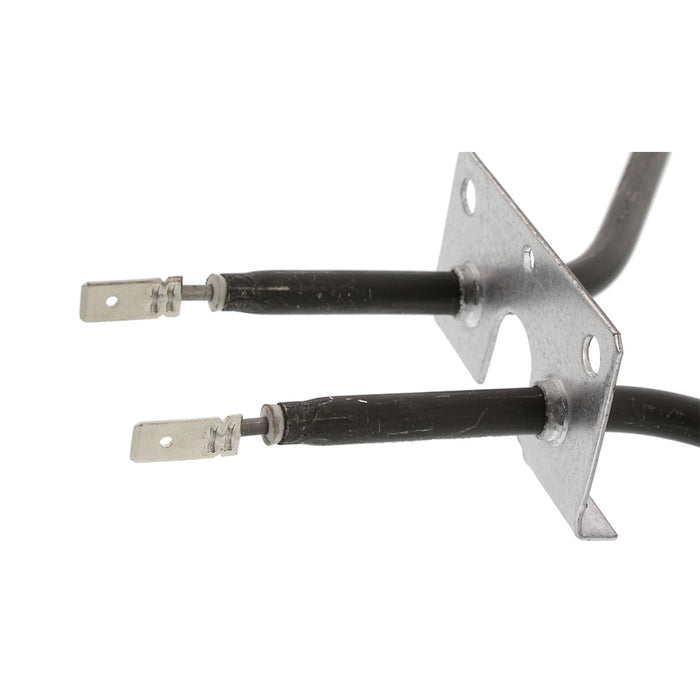

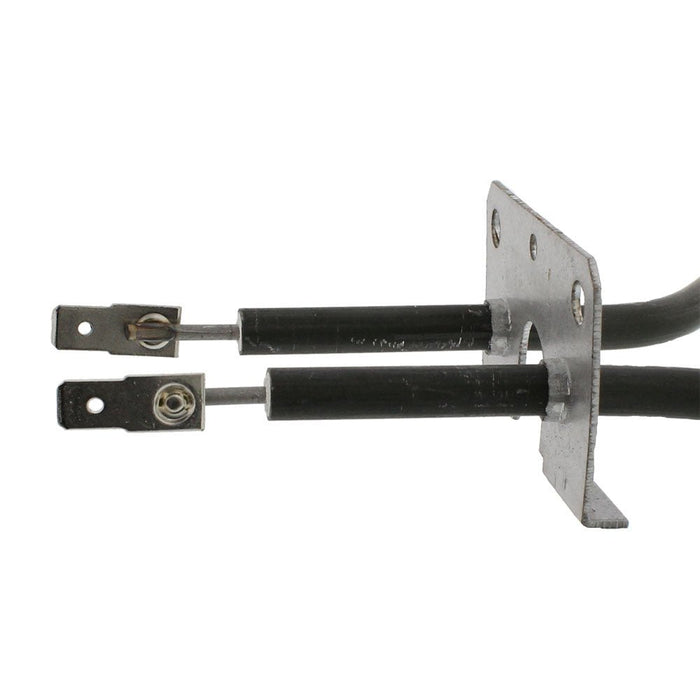

7. To place the new broil element, place the temperature sensor on the groove of the element bracket, place the wires on the terminals.

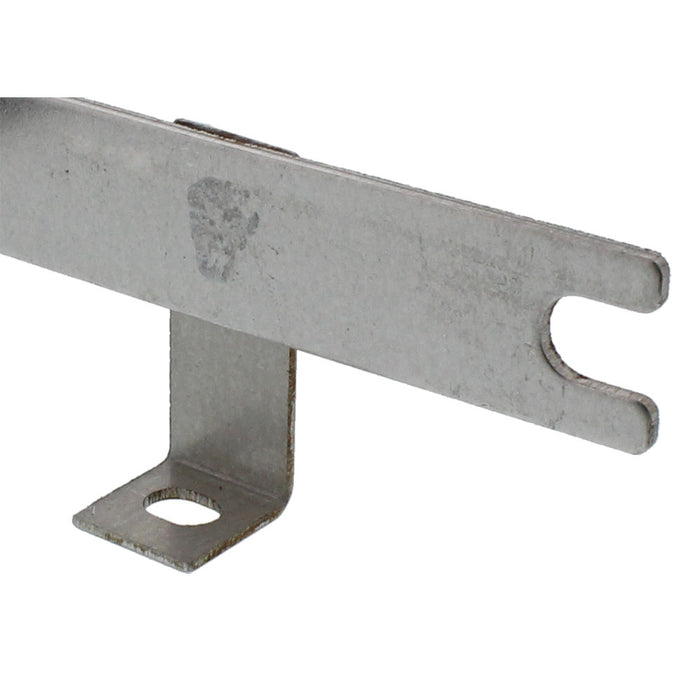

8. Install the element and secure the support bracket with the two screws. Replace the two rear screws to secure the element.
9. Slide the temperature sensor in and secure it with the screw.
10. Replace the door and lock both stoppers, replace racks and close oven door.
11. Plug in appliance and oven is all set!
