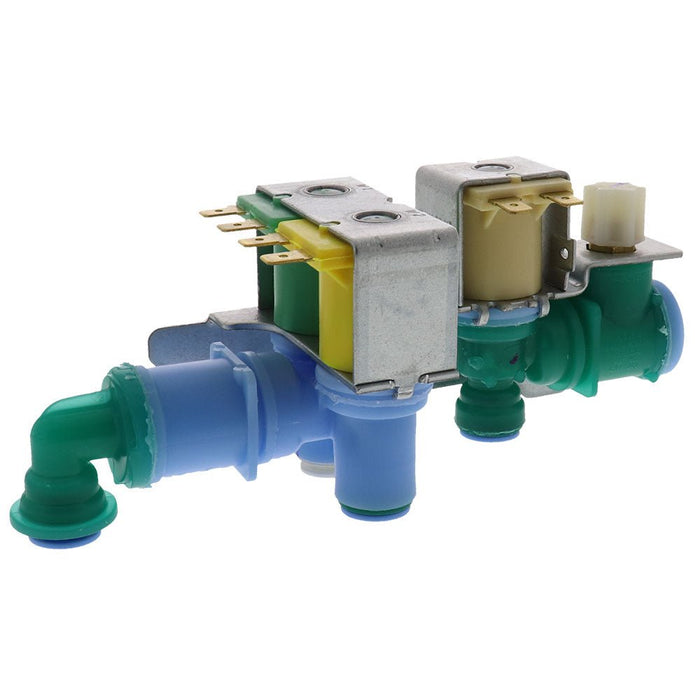

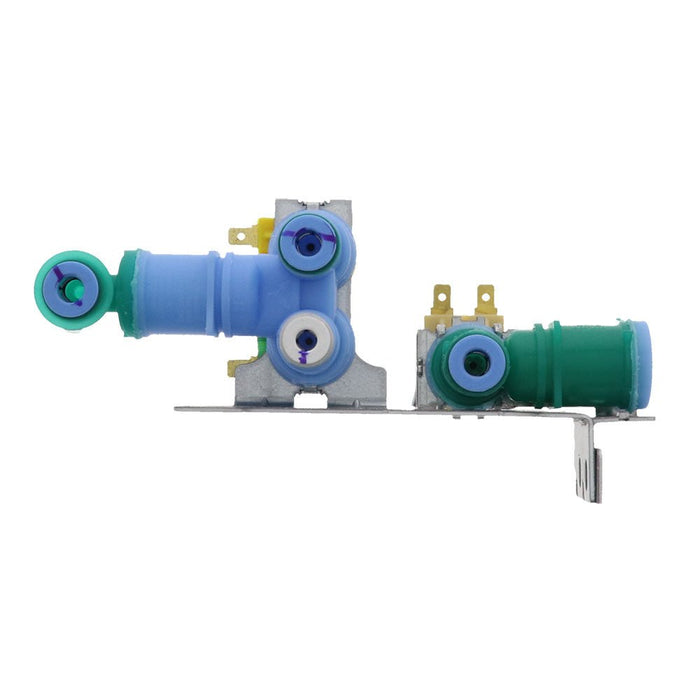

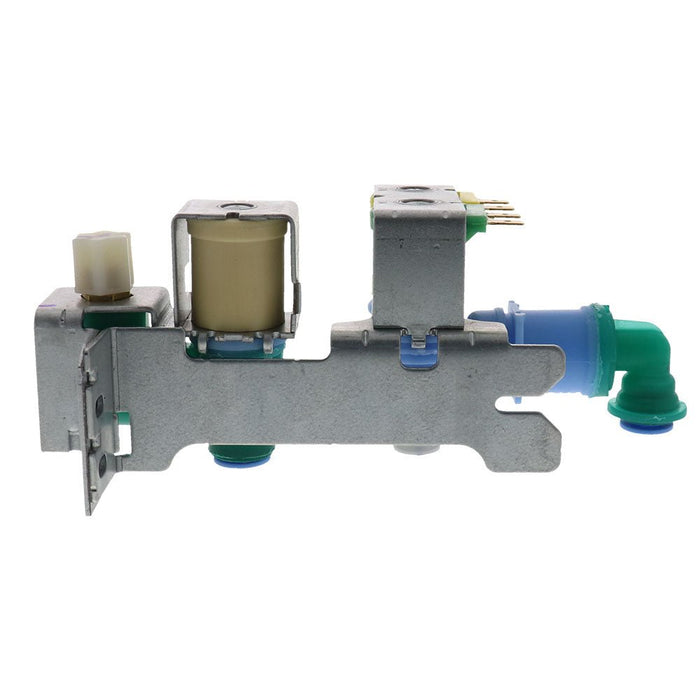

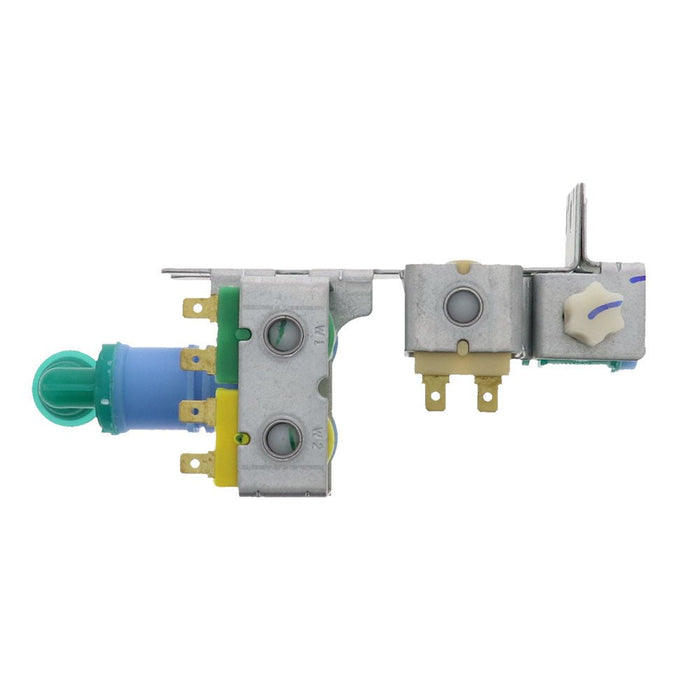

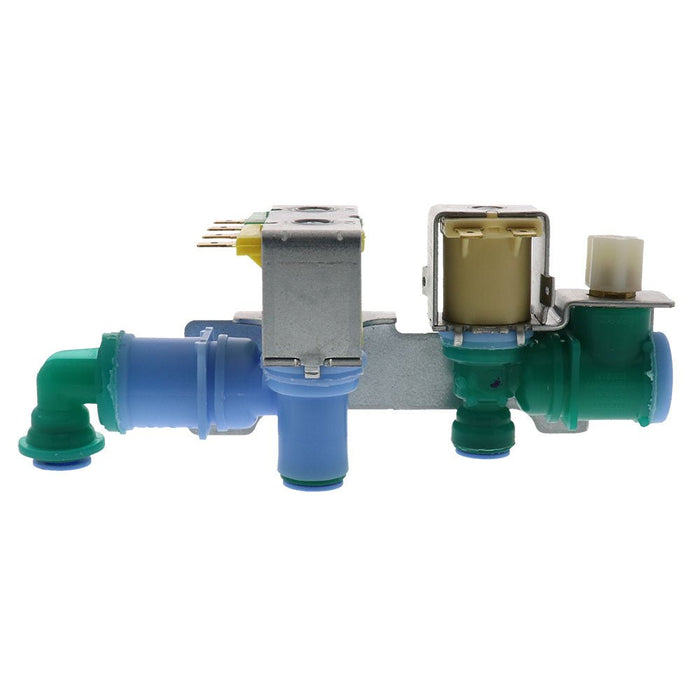

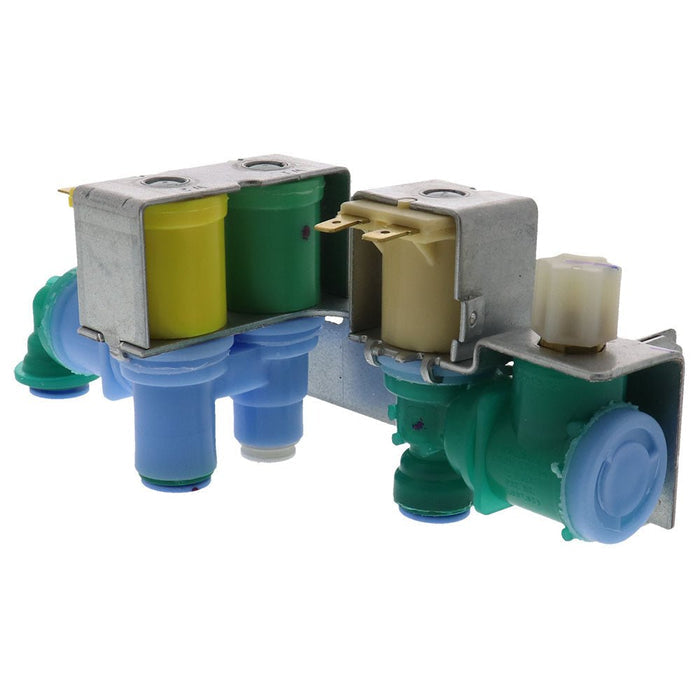

242252702 Water Valve for Frigidaire

Note:

If you are replacing your refrigerator's water valve or ice maker because of a problem with the ice maker, we recommend replacing both the water valve and the ice maker.

Click here to take a look at our ice maker and water valve kits.

Description

Snap Supply’s replacement water valves could be the solution to our refrigerator’s ice maker problems. Sometimes when a refrigerator is having problems with its ice maker, it could be that the problem is the inlet water valve and not the ice maker itself.

• Cross Reference Information:
  240321801, 240505101, 240505102, 240508101, 240508102, 240531101, 241734301, 241734302, 2692163, PS7784018, B005B9C97M

• Quality you can Trust! All Snap Products are made with premium materials and are tested so they last.
• Buy with Confidence! Snap Supply Parts always come with a 1 Year Warranty.
• Compatible with the following Refrigerator brands: Electrolux, Frigidaire, Gibson, Kelvinator, and Westinghouse.

Just because parts look the same does not mean that they are the same. Use the model numbers below to ensure that this part is compatible with your appliance!

All Snap parts come with installation instructions to help you with your repair. If you need more help, you can always contact us for further assistance. Email us at support@snap.parts or give us a call at 1-802-727-4126.

Model Numbers

Use ctrl+F then enter your model number in search bar and hit enter

Installation Instructions

Installation Instructions for 242252702

1. Unplug the appliance and/or turn off circuit breakers to prevent electrocution.
2. Turn off the water supply of refrigerator.
3. With a ¼ inch nut driver remove the six screws that hold cardboard to the base of the refrigerator on the rear and remove the cardboard.
4. The water valve is in the lower right corner. It is important to know the location of the water lines. If possible, take a picture of the water valve.
5. Use a ½ inch wrench to loosen and remove the water inlet line and unscrew four different water lines
6. Use a ¼ inch nut driver to remove the two screws retaining the mounting bracket.
7. Remove the water valve. Note the location of wire harness connectors and remove them from the valve.
8. With a razor blade, cut off the ends of the existing water lines. Remove the plastic nut and do the same to the rest of the three water lines.
9. Press in each tube into its corresponding place in the new water valve, if unsure, refer to the picture taken earlier.
10. Reinstall wire harness connections. Screw back in the screws that hold the mounting bracket.
11. Reconnect water inlet line, tighten with a wrench.
12. Reconnect water supply, place back in cardboard and place screws.
13. Plug in the appliance

For Further Instructions Click Here

tools Needed:

• ¼ inch nut driver
• Razor blade
• ½ inch wrench
